Types of Black Masterbatch and Applications
1. What is Black Masterbatch?
Black masterbatch is a concentrated mixture of carbon black pigment, polymer carrier resin, and functional additives used to impart a deep black color to plastic products. It is widely used in the plastics industry not only for coloring purposes but also for improving UV resistance, durability, and overall product performance.
Compared to direct pigment powder mixing, it offers:
- Superior dispersion
- Cleaner production (dust-free)
- Consistent color between batches
- Improved processing efficiency
- Reduced production defects
Today, black masterbatch is considered an essential material in packaging, pipe manufacturing, cable insulation, injection molding, and technical plastic applications.
2. Composition of Black Masterbatch
A standard black masterbatch formulation typically consists of:
2.1 Carbon Black
Carbon black is the key ingredient that determines:
- Blackness intensity
- Opacity and coverage
- UV resistance
- Mechanical reinforcement
The carbon black content generally ranges from 15% to 50%, depending on application requirements.
2.2 Carrier Resin
The carrier must be compatible with the end-use polymer. Common carriers include:
- PE (LDPE, LLDPE, HDPE)
- PP
- ABS
- PS
- PET
Proper compatibility ensures optimal dispersion and maintains mechanical properties of the final product.
2.3 Functional Additives
These may include:
- Dispersing agents
- Heat stabilizers
- UV stabilizers
- Anti-static agents
- Processing aids
3. Classification
Black masterbatch can be categorized in several ways:
3.1 Classification by Carbon Black Content
Low Carbon Black Content (15% – 25%)
Characteristics:
- Economical cost
- Moderate blackness
- Suitable for non-premium applications
Applications:
- Garbage bags
- General packaging
- Basic injection molded products
Medium Carbon Black Content (25% – 35%)
Characteristics:
- Good opacity
- Stable dispersion
- Balanced cost-performance ratio
Applications:
- Agricultural films
- Industrial packaging
- Consumer plastic products
High Carbon Black Content (35% – 50%)
Characteristics:
- Deep jet-black appearance
- Excellent UV protection
- High opacity and coverage
- Premium performance
Applications:
- HDPE pipes
- Electrical cables
- Outdoor films
- Engineering plastic components
4. Applications
(Illustrative purposes only)
4.1 Packaging Industry
Used in blown film and cast film production:
- Shopping bags
- Trash bags
- Industrial liners
- Multi-layer packaging
Requirements include excellent dispersion, no gels, and no impact on tensile strength.
Typical dosage: 1% – 3%.
4.2 Pipe Industry
Widely used in:
- HDPE water supply pipes
- Irrigation pipes
- Cable protection conduits
Technical requirements:
- UV resistance (minimum 2% carbon black in final product for outdoor pipes)
- High dispersion quality
- Stable melt flow index (MFI)

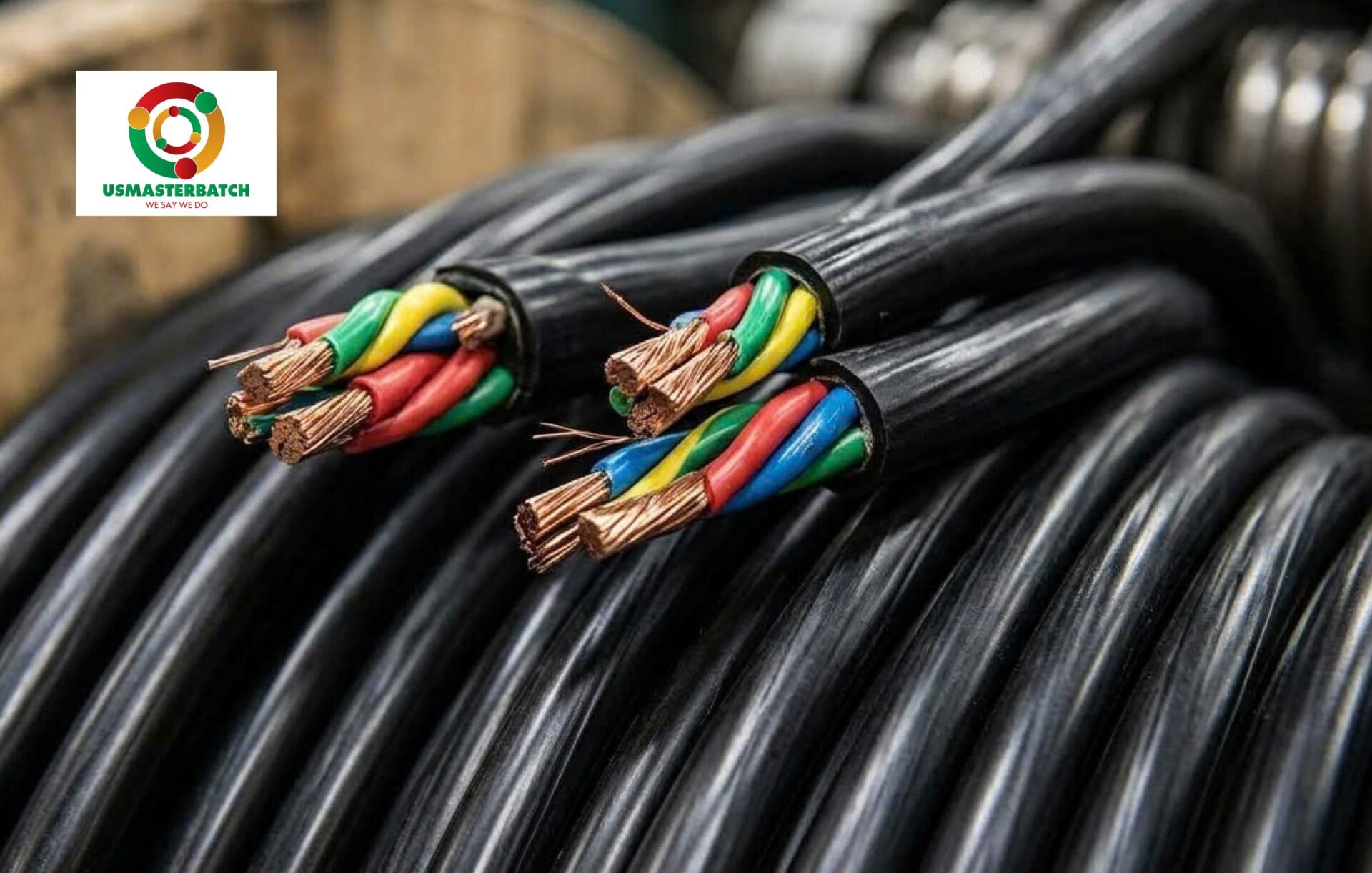

4.3 Cable and Wire Industry
Black masterbatch plays a crucial role in:
- Outer cable sheathing
- UV protection
- Environmental durability
It must ensure:
- High thermal stability
- No metallic contamination
- Consistent electrical insulation performance
4.4 Injection Molding Applications
Used for:
- Plastic furniture
- Household items
- Electronic housings
- Automotive components
Requirements include:
- High surface gloss
- Impact resistance
- No color streaking
- Stable processing performance
4.5 Sheet and Profile Extrusion
Applications include:
- Roofing sheets
- Construction profiles
- Plastic panels
Products require:
- Weather resistance
- Long-term color stability
- Anti-aging properties
5. Classification by Carrier Type
PE-Based Black Masterbatch
- Most common type
- Compatible with LDPE, LLDPE, HDPE
- Cost-effective solution
PP-Based Black Masterbatch
- Designed specifically for polypropylene applications
- Ensures excellent compatibility and dispersion
Universal Black Masterbatch
- Suitable for multiple polymers
- Flexible solution
- May not be as optimized as dedicated grades
6. Processing Dosage Guidelines
Typical usage rates:
- 1% – 2% for thin films
- 2% – 4% for injection molding
- 3% – 5% for outdoor pipes
Overdosing may:
- Increase production costs
- Reduce mechanical strength
- Affect melt flow properties
7. Key Criteria for Selecting Black Masterbatch
When choosing black masterbatch, manufacturers should consider:
- Carbon black concentration
- Dispersion quality
- Carrier compatibility
- UV resistance requirements
- Processing method
- Cost-performance balance
About US Masterbatch JSC
US Masterbatch JSC is one of the leading masterbatch and plastic compound manufacturers in Vietnam. With modern production facilities and advanced extrusion technology, US Masterbatch supplies high-quality masterbatch products to customers in over 80 countries worldwide.
Core Product Lines:
- Black and White Masterbatch
- Filler Masterbatch (CaCO₃ based)
- Color Masterbatch
- Additive Masterbatch
- PVC Compounds
US Masterbatch focuses on:
- Stable quality control systems
- Advanced R&D capabilities
- Custom formulation development
- Competitive global pricing
- Technical consultation and after-sales support
With strong expertise in both filler and color masterbatch solutions, US Masterbatch provides tailored black masterbatch grades suitable for film, injection molding, pipe, and cable industries.
| Criteria | Black Masterbatch | Direct Powder Mixing |
|---|---|---|
| Dispersion | Excellent | Inconsistent |
| Cleanliness | Dust-free | Dust generation |
| Batch consistency | High | Variable |
| Production efficiency | Improved | Lower |
| Defect rate | Reduced | Higher |
Market Trends
The global market is shifting toward:
- Higher UV-resistant grades
- Improved dispersion technologies
- Cost-optimized solutions combining black and filler masterbatch
- Sustainable and environmentally friendly formulations
- Stricter quality control and certification standards
Conclusion
Black masterbatch is an indispensable solution in modern plastic manufacturing. Selecting the right grade ensures not only optimal color performance but also improved mechanical strength, UV stability, and long-term product durability.
For manufacturers seeking a reliable and technically capable supplier, partnering with experienced producers such as US Masterbatch JSC can provide long-term value through stable quality, customized solutions, and professional technical support.
